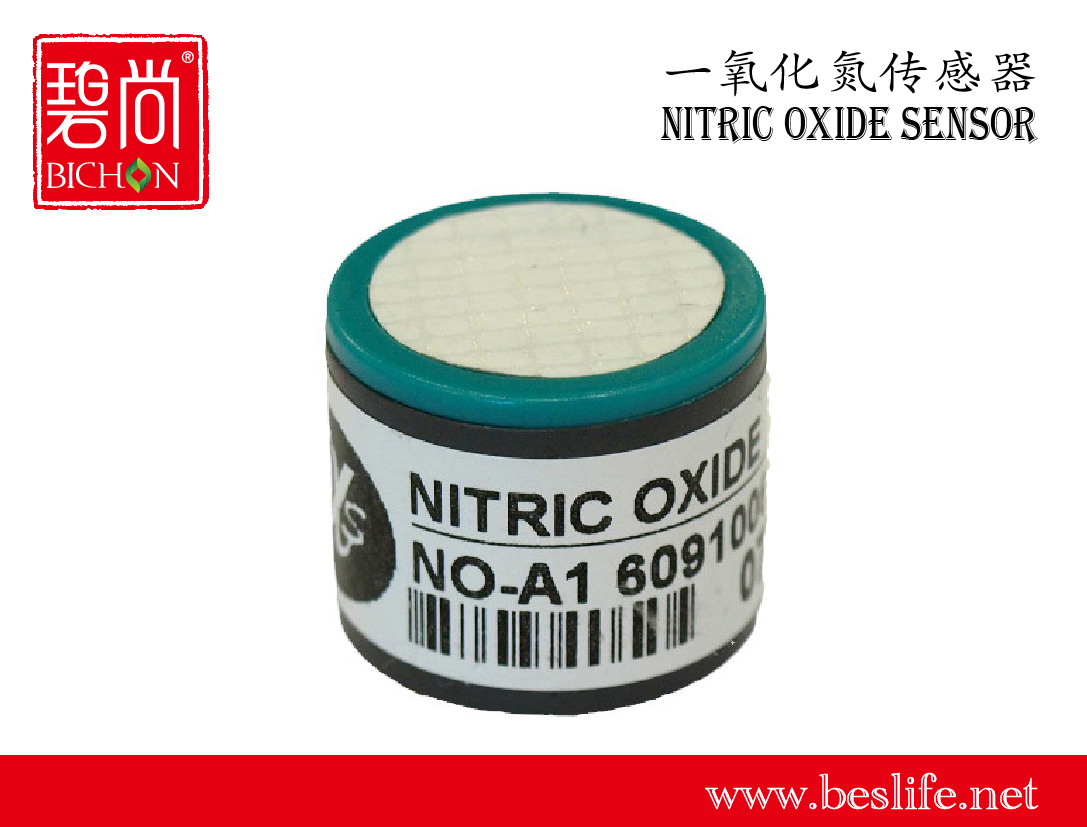

英国阿尔法Alphasense工业有毒气体一氧化氮传感器NO-A1

英国阿尔法Alphasense工业有毒气体一氧化氮传感器NO-A1

立即订购

品牌：Alphasense
型号：NO-A1
系列：4
可检测气体类型：NO 一氧化氮
精度：3
输出类型：模拟
工作温度：50（℃）
电源电压：3.3（V）
电源电流：100（mA）
最小包装数：1
应用领域：测量仪器
规格：一氧化氮传感器NO-A1
传感器类型：电化学传感器
适用产品：有毒气体检测仪

全国服务热线：

181-28849099

一、一氧化氮传感器NO-A1主要特性
灵敏度:320-480nA/ppm
响应时间:<45s
线性范围:0~50ppm，全量程线性度误差+15~+25ppm
过载:800ppm
分辨率:<0.2ppm
尺寸:中20.2*16.5
使用寿命:2年
存储周期:6个月
工作温度:-30~50℃
工作湿度:15~90%RH
负载电阻:10~47Ω
偏置电压:+300mV

二、一氧化氨传感器NO-A1典型应用
汽车屋气分析仪，工业有毒气体检测等一氧化氮气体检测场合

为高校飞行教学量身打造

高校专版教练机，优良的模块化设计，使学员简单清晰了解无人机构造。

续航体验飞行魅

空载飞行时长可达35分钟，远远高于市场无人机。

配备工业级飞行系统

配备工业级的飞行系统，可进行工业级飞控数据采集。

高性价比诚意之作

价格仅为市场工业级无人机的二十分之一到十分之一。

后处理软件风暴式呈现测绘成果

标配自主知识产权数据处理软件，（含相机标定、拼接、正射影像、编辑），选配DLG立测。拥有快速处理海量影像数据能力，提升航测精度与效率。

多功能集于一身的飞行“教师”

可针对性的进行细节改动，用于搭载多种设备进行各种作业。

让飞行梦想变得轻松与简易

独特的卡扣设计，便于安装和拆卸，便于携带。

【型号】HFK650（教练版）

【遥控距离】1000m半径

【作业高度】100m-300m

【材质】碳纤维+铝合金+玻璃钢

【飞行速度】5-11m/s

【对角线距离】350mm

【空载航时】25-30min

【满载航时】20-24min

【飞行模式】自动航线/GPS/GLONASS/姿态

【工作温度】-5-50℃

【电池规格】6S5000MAH

【电机规格】4110

【起飞重量】1200g

【上升速度可达】5m/s

【下降速度可达】4m/s

【飞行海拔高度可达】6000m

【抗风等级可达】4级

【软件】Phototec数据处理
